| Price | USD10,000-100,000/SET |
| MOQ | 1 SET |
| Delivery Time | 45-60days |
| Brand | Serworld |
| Place of Origin | China |
| Certification | CE/ISO |
| Model Number | SW150*2 |
| Packaging Details | Wooden Pallet |
| Payment Terms | LC/TT |
| Supply Ability | 45 days for 10 sets |
| Packaging Details | Wooden Pallet | Conditioner (kw) | 22 |
| Supply Ability | 45 days for 10 sets | Capacity(t/h) | 8-12 |
| Function | Aniaml Feed Machine | Screw Diameter | 150mm |
| Minimum Order Quantity | 1 SET | Voltage | 220V |
| Expansion Coefficient | 1.5-1.9 | Motor Power | 11kw |
| Main Power(kw) | 250/315 | Features | High Efficiency, Easy Operation, Low Noise |
| Condition | New | Steam Consumpition(kg/t) | 50-60kg/t |
| Usage | Animal Feed Production | Place of Origin | China |
| Motor Brand | Siemens | Color | custom made |
| Fit For | Chicken, pig, duck etc animals | Control System | PLC |
| Model Number | SW150*2 | Certification | CE/ISO |
| Brand Name | Serworld | Payment Terms | LC/TT |
| Motivation Type | Belt or Gear | Raw Material | Powder |
| Applicable Industries | Manufacturing Plant, Farms, Feed Factory | Delivery Time | 45-60days |
| Price | USD10,000-100,000/SET | Hourly Output | 900-1200kg/h |
| Production Capacity | 8-10T | Feeder Power(kw) | 3 |
| Frequency | 50Hz | Pellet Size | 2-14mm |
| Pellets Diameter | 2-12mm | Application | Animal Feed Production |
| Motor brand | ABB or SIEMENS | Power | 55kw |
| Steam Temperature | 130-150ºC |
Double Screw Fish Feed Production Puffing Machine Animal Feed Production Equipment Floating Fish Feed Pellet Making Machine
Application scope:
SW series Twin Screw Extruder is mainly applied on floating, sinking and slow sinking aquafeed production, pet food production. The composition of screws is
adjustable according to the character of feed. The machine can produce consistently and stably 0.8mm and 1.0 mm pellets.
Main features:
(1) Highly automatic control with intelligent modules, which reduces instability of capacity and inconsistency of product quality.
(2) Special design of screw structure and geometric thread machine can maximize cutting force and mechanical kneading effect. Material is gelatinized and extruded
completely and capacity is increased 15-20% more than before.
(3) Four Shafts parallel transmission technology is adopted in gear box with high transmission efficiency. Gear box is made of high-strength alloy wear-resistance
material, which can continuously work at least 75,000 hours in a stable and reliable manner.
(4) Feed for special breeds aquatic can be produced through vacuum exhaust system that produces floating feed with density of 360~460g/cm³ and fast sinking feed
with density of 620~720g/cm³. Moreover, this series can produce sophisticated sinking pellet such as penaeus monodon feed with advantages including 100%
sinking rate, easy digestion, good water resistance and favorable appearance.
Technical parameters:
|
Model |
SW120x2 |
SW150x2 |
SW180x2 |
|
Main Power(kw) |
160/200 |
250/315 |
500/560 |
|
Feeder Power(kw) |
3 |
3 |
3 |
|
Conditioner Power(kw) |
22 |
22 |
30 |
|
Capacity(t/h) |
5-7 |
8-12 |
15-18 |
Advantages of Serworld double screw extruder
Good adaptability to formula, wide range of application,leading the industry's low starch expansion technology, larger formula (raw material, ratio) adjustment space.
Good adaptability to formula, wide range of application,High grease addition(precision addition between 2-30%).
The output of similar model is superior than Other companies in the industry.
Capacity of Serworld extruder SW150*2
|
Die specification |
Serworld SW150×2 |
Extruder of other companies in the industry |
|
0.6 |
2.5-3 T/H |
Can’t run continuously |
|
0.8 |
4 T/H |
2-3T/H,unstable appearance |
|
1.0 |
6 T/H |
3-4 T/H,unstable appearance |
|
3.0 |
9-10T/H |
7-9T/H |
|
4.0 |
10T/H |
7-9T/H |
Feed sample produced by Serworld Company extruder

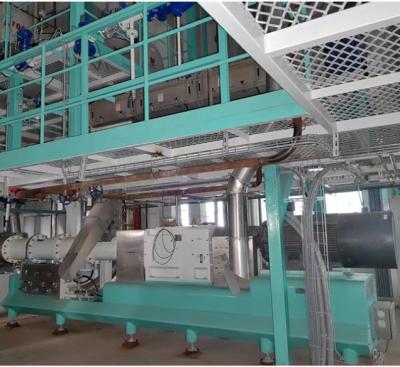

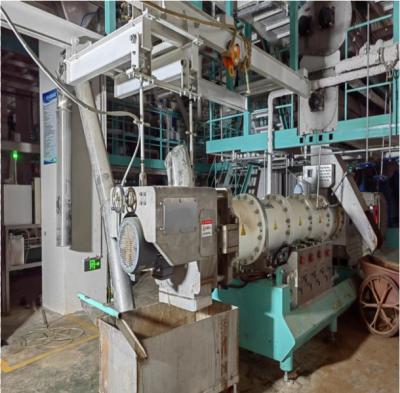

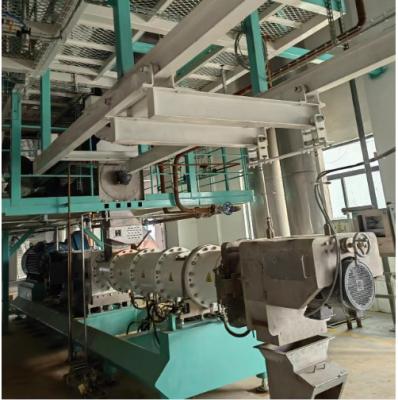

On site of installation
