1.04
Inch
Round
AMOLED
Display
Module
High-resolution
340×340
dot
AMOLED
display
with
SPI
interface
and
CO5300-AF
driving
IC,
offering
600
nits
brightness
and
all-view
angle
visibility.
Key
Specifications
|
Attribute
|
Value
|
|
Display
Technology
|
AMOLED
screen
|
|
Size
|
1.04
inch
|
|
Resolution
|
340×340
dots
|
|
Interface
|
SPI
|
|
Brightness
|
600
cd/m²
|
|
Driving
IC
|
CO5300-AF
|
Technical
Parameters
|
Part
No.
|
ESHX1041535A0
|
|
Outline
Size
|
29.25(W)
×
28.9966(H)
mm
|
|
Active
Area
Size
|
26.35
×
26.53
mm
|
|
View
Angle
|
All
|

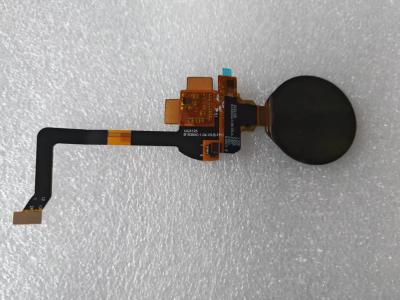

Product
Images
Pin
Definition
Diagram
![AMOLED display pin definition diagram]()
AMOLED
Technology
Overview
Advantages
-
Perfect
blacks
&
infinite
contrast
ratio
-
Vibrant
colors
with
wide
gamut
-
Ultra-fast
response
times
-
Flexible
and
thin
design
capabilities
-
Energy
efficient
operation
-
Superior
viewing
angles
-
Excellent
HDR
performance
Considerations
-
Higher
cost
compared
to
LCD/TFT
-
Shorter
operational
lifetime
-
Lower
peak
brightness
in
sustained
use
Power
Efficiency
Comparison
-
Content-dependent
efficiency:
AMOLED
consumes
power
per
pixel,
saving
energy
on
dark
content
-
Brightness
control:
Dynamic
pixel
brightness
adjustment
improves
low-light
efficiency
-
Size
impact:
More
efficient
for
smaller
displays
where
pixel
count
is
lower
-
Backlight
difference:
LCD/LED
require
constant
backlight
regardless
of
content
Manufacturer
Advantages
-
Cost-effective
inland
manufacturing
base
-
Advanced
automated
production
equipment
-
20+
years
of
LCD
industry
expertise
-
Custom
design
capabilities
-
ISO
14001,
ISO
9001,
IATF
16949,
and
SGS
certified
Huaxin
Technology
(Enshi)
Co.,
LTD
Founded
in
2009
in
Hubei
Enshi,
specializing
in
LCD,
LCM,
TFT,
backlight,
and
OLED
research,
development,
and
production.
-
Registered
capital:
20
million
-
500+
employees
(10%
R&D,
15%
QC)
-
Product
range
includes
VA,
TN,
HTN,
STN,
FSTN,
CSTN
LCDs
-
LCM
capabilities:
COB,
TBA,
COG,
TP,
LED
backlight
Production
Capacity
|
Product
|
2021
|
2022
|
2023
|
2024
|
2025
|
|
LCD
(k
logs/day)
|
4.5
|
9
|
9
|
9
|
9
|
|
LCM
(k
pieces/day)
|
70
|
150
|
300
|
450
|
450
|
|
Backlight
(k
pieces/day)
|
100
|
200
|
300
|
500
|
500
|
|
OLED
(k
pieces/day)
|
10
|
20
|
30
|
40
|
50
|
Typical
Applications
-
Smartphones
and
tablets
-
Wearable
devices
(smartwatches)
-
AR/VR
headsets
-
Television
and
monitors
-
Automotive
displays
-
Medical
equipment
and
smart
home
devices
