| Price | $6~$1000 |
| MOQ | 1000 |
| Delivery Time | 4~6weeks |
| Brand | HuaXin |
| Place of Origin | China |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | HX046AQV8563ANT |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Payment Terms | T/T |
| Supply Ability | 500K pcs per month |
| Place of Origin | China | Display Technology | tft display module |
| Brightness | 400c/d | Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Model Number | HX046AQV8563ANT | Supply Ability | 500K pcs per month |
| resolution | 320×RGB×960 | Certification | ISO14001/ ISO9001/IATF16949 |
| Brand Name | HuaXin | Payment Terms | T/T |
| Driving IC | ST7701S | size | 4.58 inch |
| Price | $6~$1000 | Delivery Time | 4~6weeks |
| Minimum Order Quantity | 1000 | name | bar type TFT |
| Interface | MIPI |
| Display Technology | TFT Display Module |
| Name | Bar Type TFT |
| Size | 4.58 inch |
| Resolution | 320×RGB×960 |
| Brightness | 400c/d |
| Interface | MIPI |
| Driving IC | ST7701S |

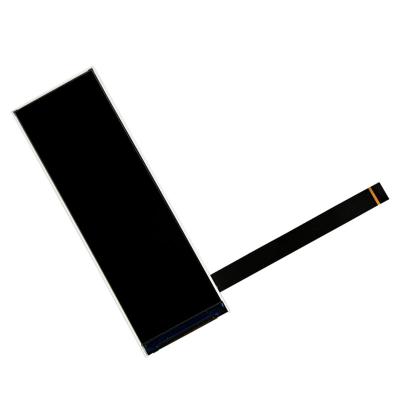

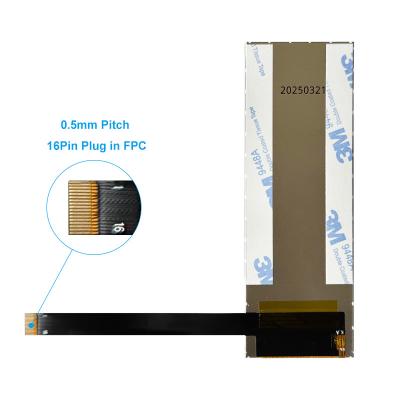

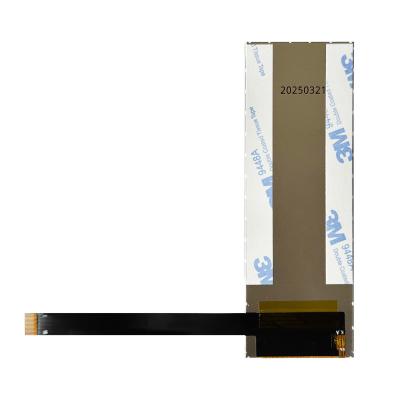

HX046AQV8563ANT is a 4.58 inch bar type TFT display with 320×RGB×960 dots resolution, all-o'clock viewing angle, MIPI interface, 400nits brightness, and ST7701S driving IC.
| Part No. | HX046AQV8563ANT |
| Display Mode | 4.58 inch TFT display |
| Outline Size (mm) | 41.57×118.8×2.5 |
| AA Size (mm) | 36.77×110.3 |
| Display Dots | 320×RGB×960 |
| View Angle | All |
| Brightness | 400C/D |
| Interface | MIPI |
| Driving IC | ST7701S |
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products
LCD Series: VA, TN, HTN, STN, FSTN, CSTN and other series
LCM Series: COB, TBA, COG, TP, LED backlight and other series
Registered Capital: Twenty million
Current Staff: 500+
R&D Team: 10% of workforce
QC Team: 15% of workforce
| Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production Capacity | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production Capacity | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production Capacity | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
