| Price | $24~$28 |
| MOQ | 1 |
| Delivery Time | 4~6weeks |
| Brand | HuaXin |
| Place of Origin | China |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | HXO392001A |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Payment Terms | T/T |
| Supply Ability | 500K pcs per month |
| Place of Origin | China | Display Technology | AMOLED Display Module |
| Display size | 3.92 inch | Brightness | 500C/D |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton | Model Number | HXO392001A |
| interface | MIPI | Supply Ability | 500K pcs per month |
| Certification | ISO14001/ ISO9001/IATF16949 | Name | Touch Panel AMOLED |
| Brand Name | HuaXin | Payment Terms | T/T |
| Driving IC | CH12726A | Price | $24~$28 |
| Delivery Time | 4~6weeks | view angle | all |
| Minimum Order Quantity | 1 | Resolution | 1080*1240 |

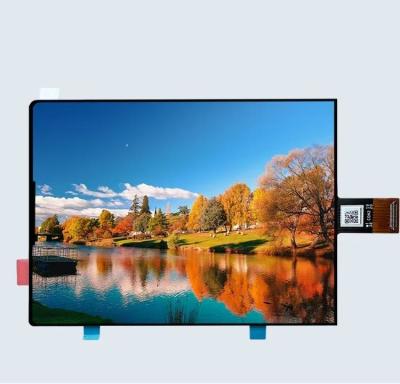

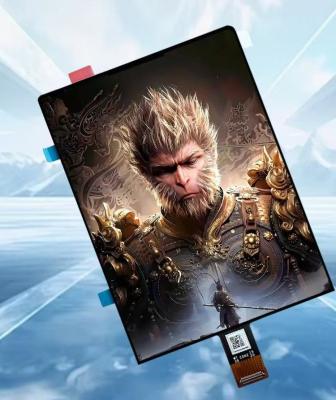

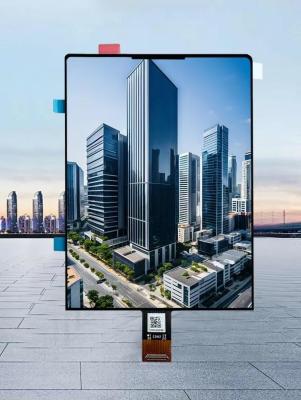

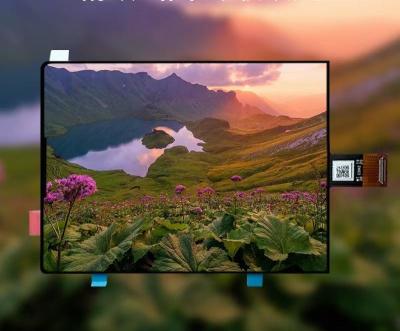

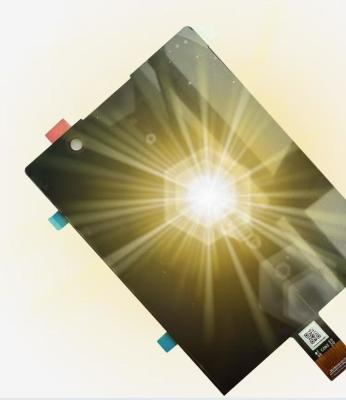

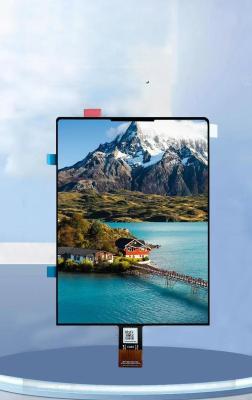

With 1080×1240 resolution, this display delivers remarkable visual experience with 500 nits brightness, showcasing true high-definition quality.
| Attribute | Value |
|---|---|
| Display Technology | AMOLED Display Module |
| Name | Touch Panel AMOLED |
| Display size | 3.92 inch |
| Resolution | 1080×1240 |
| Interface | MIPI |
| Driving IC | CH12726A |
| Brightness | 500C/D |
| View angle | All |
| Parameter | Value |
|---|---|
| Part No | HXO392001A |
| Display Mode | 3.92 inch AMOLED display |
| Outline size (mm) | 93.1×69.3×1.65 |
| AA size (mm) | 65.488(W)×75.144(H) |
| Display dots | 1080×1240 |
| Working temperature | -20°C to 70°C |
| Storage temperature | -30°C to 80°C |
AMOLED is more expensive than LCD and TFT technologies, has a shorter lifetime, and offers lower peak brightness in sustained use.
Huaxin Technology (Enshi) Co., LTD
| Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production Capacity | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production Capacity | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production Capacity | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
AMOLED displays consume power on a per-pixel basis, meaning that pixels displaying black consume very little power, while LCD/LED displays require constant backlight power.
AMOLED is more efficient for dark content as pixels can be turned off, while LCD/LED displays consume constant power regardless of content.
AMOLED can adjust pixel brightness individually, while LCD/LED displays typically have fixed backlight brightness.
AMOLED is more power-efficient for smaller displays, while larger LCD/LED displays may require more power-hungry backlights.
