| Price | $6~$1000 |
| MOQ | 1000 |
| Delivery Time | 4~6weeks |
| Brand | HuaXin |
| Place of Origin | China |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | HX17502E5096 |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Payment Terms | T/T |
| Supply Ability | 500K pcs per month |
| Place of Origin | China | Display Technology | transflective display |
| Brightness | 300c/d | Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Model Number | HX17502E5096 | Supply Ability | 500K pcs per month |
| resolution | 296*222 | Certification | ISO14001/ ISO9001/IATF16949 |
| Brand Name | HuaXin | Payment Terms | T/T |
| Driving IC | SSD2119 | size | 1.75 inch |
| Price | $6~$1000 | Delivery Time | 4~6weeks |
| Minimum Order Quantity | 1000 | name | tft lcd module |
| Interface | RGB |

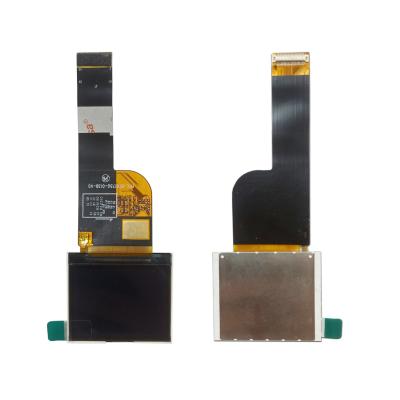

High-quality 1.75 inch transflective TFT display with 296×222 resolution, RGB interface, SSD2119 driving IC, and 300c/d brightness with all viewing angles.
| Attribute | Value |
|---|---|
| Display Technology | Transflective Display |
| Product Type | TFT LCD Module |
| Size | 1.75 inch |
| Resolution | 296×222 dots |
| Brightness | 300c/d |
| Interface | RGB |
| Driving IC | SSD2119 |
| Part No. | HX17502E5096 |
| Display Mode | 1.75 inch transflective TFT |

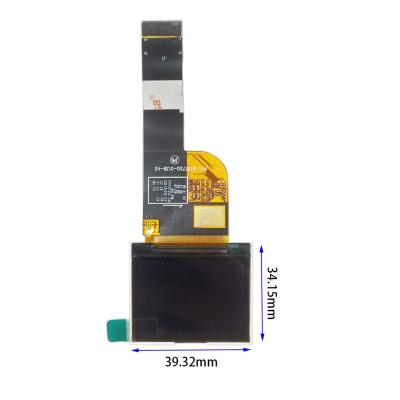

| Outline Size (mm) | 39.32×34.15×0.5 |
| AA Size (mm) | 35.5×26.64 |
| Display Dots | 296×222 |
| View Angle | All |
| Working Temperature | -30°C to 70°C |
| Storage Temperature | -30°C to 80°C |
TFT substrate input and CF substrate input flow chart:
TFT structure diagram:
Huaxin
Technology
(Enshi)
Co.,
LTD
Hubei,
Enshi
|
Founded
2009
High-tech
enterprise
specializing
in
LCD,
LCM,
TFT,
backlight,
and
OLED
research,
development,
and
production.
Product Range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs
Company
Size:
500+
employees
(10%
R&D,
15%
QC)
Registered
Capital:
20
million
