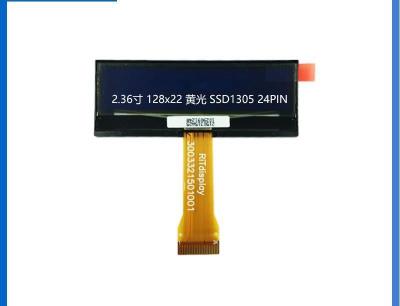

2.36
Inch
OLED
Display
Panel
128×22
PMOLED
Display
IC
SSD1305
24PIN
Product
Overview
2.36-inch
OLED
screen
with
128×22
resolution,
white/yellow
light
optional,
SSD1305
driver,
24PIN
interface.
Suitable
for
industrial
control
instruments
and
portable
devices
with
low-power
consumption.
Key
Specifications
|
Attribute
|
Value
|
|
Display
Technology
|
PMOLED
screen
|
|
Resolution
|
128×22
|
|
Size
|
2.36
inch
|
|
Color
|
Default
white;
Yellow
available
(contact
customer
service)
|
|
Interface
|
8-bit68XX/80XXParallel4-wireSP
|
|
Driving
IC
|
SSD1305
|
|
Part
Number
|
HX236WG24C5-128022
|
Technical
Parameters
|
Active
Area
|
55.85×11.85mm
|
|
Module
Size
|
63.3(W)×20.8(H)mm
|
|
Operation
Temperature
|
-40~70°C
|
|
Pin
Quantity
|
24
PINS
|

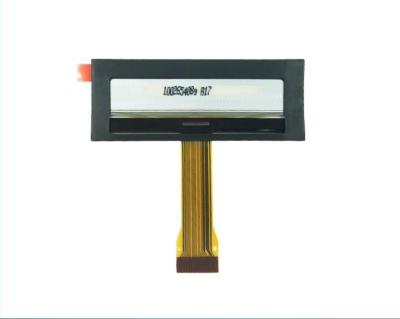

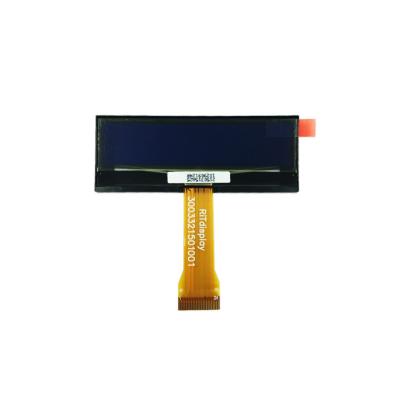

Product
Images
Technical
Documentation
PMOLED
Characteristics
-
Display
Structure:
Array
of
organic
light-emitting
diodes
(OLEDs)
where
each
acts
as
a
single
pixel
-
Passive
Matrix:
Uses
row/column
addressing
scheme
with
driving
circuit
-
High
Contrast:
Vibrant
colors
without
backlight
requirement
-
Power
Efficient:
Only
consumes
power
for
active
pixels
-
Thin
&
Flexible:
Can
be
manufactured
on
flexible
substrates
-
Ideal
for:
Smaller
screens
with
moderate
resolution
requirements
Product
Applications
-
Wearable
Devices
-
Portable
Audio
Players
-
Thermostats
and
Home
Automation
-
Car
Dashboards
and
Instrument
Clusters
-
Medical
Devices
-
Industrial
and
Professional
Equipment
OLED
Technology
Overview
Advantages
-
Lighter
and
thinner
than
LCDs
-
High
contrast
and
color
saturation
-
Lower
power
consumption
Considerations
-
Higher
cost
compared
to
LCD
and
TFT
-
Shorter
operational
lifetime
than
LCD/TFT
Manufacturer
Information
Huaxin
Technology
(Enshi)
Co.,LTD
-
Specializing
in
R&D,
production
and
sales
of
LCD,
LCM,
TFT,
backlight,
and
OLED
displays
since
2009.
Quality
Certifications
-
ISO14001
-
ISO9001/IATF16949
-
SGS
certified
LCD
modules
