| Price | $2.8 |
| MOQ | 1000 |
| Delivery Time | 4~6weeks |
| Brand | HuaXin |
| Place of Origin | China |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | HX1124HDDAG01 |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Payment Terms | T/T |
| Supply Ability | 500K pcs per month |
| Place of Origin | China | Display Technology | AMOLED screen |
| Brightness | 250c/d | Size | 1.12 inch |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton | Model Number | HX1124HDDAG01 |
| interface | 3-wireSPI/4-wireSPI | Supply Ability | 500K pcs per month |
| Certification | ISO14001/ ISO9001/IATF16949 | Name | AMOLED panel |
| Brand Name | HuaXin | Payment Terms | T/T |
| Price | $2.8 | Delivery Time | 4~6weeks |
| Minimum Order Quantity | 1000 | driving IC | JD9613 |
| Resolution | 126X294 |

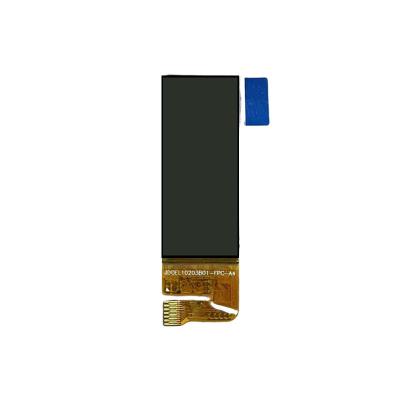

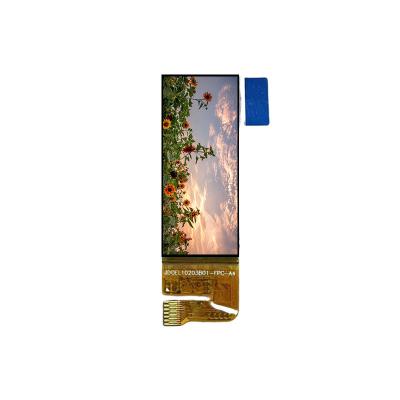

HX1124HDDAG01 is a 1.12 inch AMOLED display module featuring 126×294 resolution, all-view angle, 3-wire/4-wire SPI interface, 250 nits brightness, and JD9613 driving IC.
| Attribute | Value |
|---|---|
| Display Technology | AMOLED screen |
| Size | 1.12 inch |
| Resolution | 126×294 |
| Interface | 3-wireSPI/4-wireSPI |
| Driving IC | JD9613 |
| Brightness | 250c/d |
| Parameter | Value |
|---|---|
| Part No. | HX1124HDDAG01 |
| Display Mode | 1.12 inch AMOLED display |
| Outline Size (mm) | 12.96×30.94×0.15 |
| AA Size (mm) | 10.962×25.578 |
| Display Dots | 126×294 |
| View Angle | All |
AMOLED displays are more expensive than LCD and TFT alternatives, have a shorter lifetime, and may exhibit lower peak brightness in sustained use.
| Product Type | 2021 | 2022 Goal | 2023 Goal | 2024 Goal | 2025 Goal |
|---|---|---|---|---|---|
| LCD (k logs/day) | 4.5 | 9 | 9 | 9 | 9 |
| LCM (k pieces/day) | 70 | 150 | 300 | 450 | 450 |
| Backlight (k pieces/day) | 100 | 200 | 300 | 500 | 500 |
| OLED (k pieces/day) | 10 | 20 | 30 | 40 | 50 |
AMOLED displays consume power per-pixel, with dark content using minimal power. LCD/LED require constant backlight power regardless of content.
AMOLED excels with dark content where pixels can be turned off. LCD/LED power consumption remains constant across content types.
AMOLED dynamically adjusts pixel brightness for efficiency. LCD/LED typically maintain fixed backlight brightness.
AMOLED is more efficient for smaller displays. Larger LCD/LED displays may require more powerful backlights.
