1.78
Inch
AMOLED
Touch
Display
with
RM69090
Driving
IC
Product
Overview
High-resolution
368×448
AMOLED
display
module
featuring
MIPI/SPI
interface,
350cd/m²
brightness,
and
RM69090
driving
IC
with
capacitive
touch
panel
(CTP).
Key
Specifications
|
Attribute
|
Value
|
|
Display
Technology
|
AMOLED
module
|
|
Size
|
1.78
inch
|
|
Resolution
|
368×448
|
|
Interface
|
MIPI,
SPI
|
|
View
Angle
|
All
directions
|
|
Brightness
|
350
cd/m²
|
|
Touch
Panel
|
With
CTP
|
|
Driving
IC
|
RM69090
|
Technical
Parameters
|
Parameter
|
Value
|
|
Part
Number
|
ESHX178ERC12B
|
|
Diagonal
Screen
Size
|
1.78
inch
OLED
|
|
Operation
Temperature
|
-20℃
to
+70℃
|
|
Active
Area
|
30.6×37.24
mm
|
|
Panel
Size
|
33.6×41.7×1.66
mm
|
|
Contrast
Ratio
|
10000:1
|
|
Pin
Quantity
|
34
pins
|

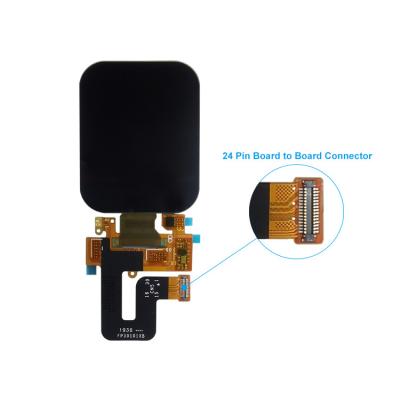

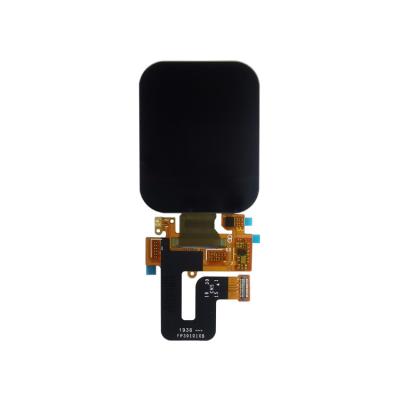

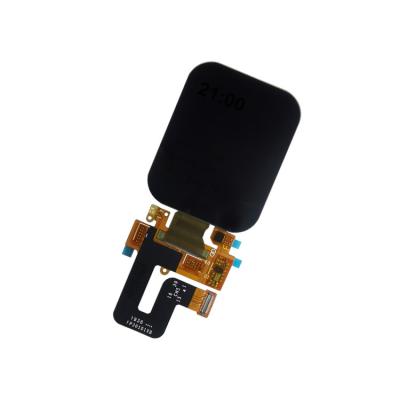

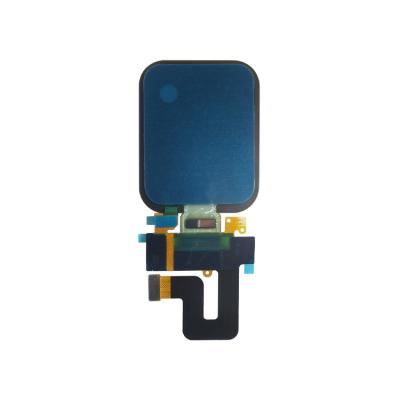

Product
Images
Technical
Documentation
AMOLED
Technology
Advantages
-
Perfect
blacks
&
infinite
contrast
ratio
-
Vibrant
colors
with
wide
gamut
-
Ultra-fast
response
times
-
Flexible
and
thin
design
capabilities
-
Energy
efficient
operation
-
Always-On
Display
(AOD)
functionality
-
Superior
viewing
angles
-
Excellent
HDR
performance
Power
Efficiency
Comparison
-
Power
Consumption:
AMOLED
consumes
power
per
pixel
(dark
pixels
use
less),
while
LCD
requires
constant
backlight
power
-
Content
Dependency:
AMOLED
excels
with
dark
content;
LCD
power
usage
remains
constant
-
Brightness
Control:
AMOLED
adjusts
pixel
brightness
individually;
LCD
uses
fixed
backlight
-
Display
Size:
AMOLED
more
efficient
for
smaller
displays;
LCD
backlights
become
less
efficient
at
larger
sizes
Typical
Applications
-
Smartphones
and
tablets
-
Wearable
devices
(smartwatches)
-
AR/VR
headsets
-
Television
and
monitors
-
Automotive
displays
-
Medical
equipment
and
smart
home
devices
Manufacturer
Information
Huaxin
Technology
(Enshi)
Co.,
LTD
Hubei,
Enshi
|
Founded:
2009
High-tech
enterprise
specializing
in
R&D,
production
and
sales
of
LCD,
LCM,
TFT,
backlight,
and
OLED
products.
Product
Range
-
LCD:
VA,
TN,
HTN,
STN,
FSTN,
CSTN
series
-
LCM:
COB,
TBA,
COG,
TP,
LED
backlight
series
Company
Stats
Registered
capital:
20
million
Employees:
500+
(10%
R&D,
15%
QC)
Certifications
-
ISO14001
-
ISO9001/IATF16949
-
SGS
certified
LCD
modules
