| Price | $60 |
| MOQ | 1000 |
| Delivery Time | 4~6weeks |
| Brand | HuaXin |
| Place of Origin | China |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | HX070THD8970ANT |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Payment Terms | T/T |
| Supply Ability | 500K pcs per month |
| Place of Origin | China | Display Technology | round TFT |
| Display size | 7 inch | Brightness | TBA |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton | View angle | all |
| Model Number | HX070THD8970ANT | interface | SPI+LVDS |
| Supply Ability | 500K pcs per month | Certification | ISO14001/ ISO9001/IATF16949 |

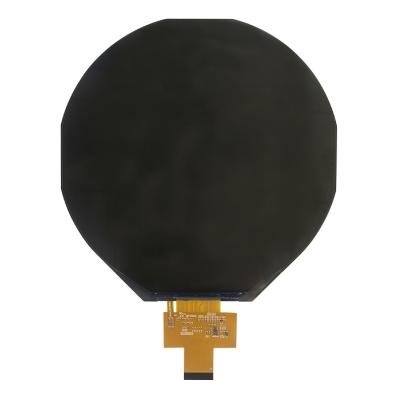

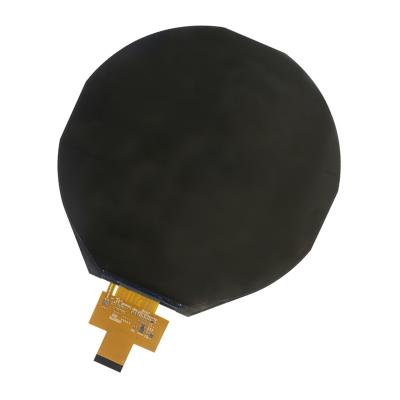

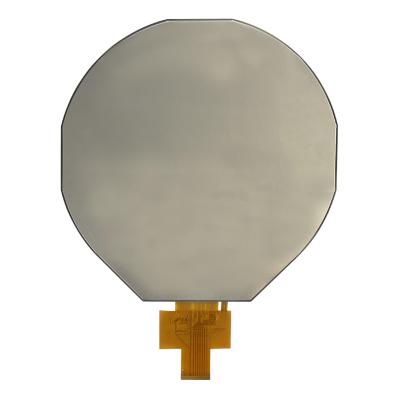

| Name | 7 inch round tft display | Brand Name | HuaXin |
| Payment Terms | T/T | Driving IC | FL5893 |
| Price | $60 | Delivery Time | 4~6weeks |
| Minimum Order Quantity | 1000 | Resolution | 1080x1080 |
| Attribute | Value |
|---|---|
| Display Technology | Round TFT |
| Display Size | 7 inch |
| Resolution | 1080×1080 |
| Interface | SPI+LVDS |
| Driving IC | FL5893 |
| Brightness | TBA |
| View Angle | All |
| Parameter | Value |
|---|---|
| Part Number | HX070THD8970ANT |
| Display Type | 7 inch round TFT display module |
| Panel Size (mm) | 186.15(H)×247.7(V)×4.8(D) |
| Active Area (mm) | 177.552(H)×177.55(V) |
Huaxin Technology (Enshi) Co., LTD specializes in research, development, and production of LCD, LCM, TFT, backlight, and OLED technologies.
| Product | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM | 70 | 150 | 300 | 450 | 450 | Thousands/Day |
| Backlight | 100 | 200 | 300 | 500 | 500 | Thousands/Day |
| OLED | 10 | 20 | 30 | 40 | 50 | Thousands/Day |
