China 0.71 Inch Round Tft Display 160x160 4wire SPI Interface Driving IC GC9D01 350c/D for sale

China 0.71 Inch Round Tft Display 160x160 4wire SPI Interface Driving IC GC9D01 350c/D for sale

0.71 Inch Round Tft Display 160x160 4wire SPI Interface Driving IC GC9D01 350c/D


Price	$1.2
MOQ	1000
Delivery Time	4~6weeks
Brand	HuaXin
Place of Origin	China
Certification	ISO14001/ ISO9001/IATF16949
Model Number	ESHX0711616TBBIG01
Packaging Details	blister+foam box+bubble bag+inside carton+master carton
Payment Terms	T/T
Supply Ability	500K pcs per month

Product Details

Product Specification

Place of Origin	China	Display Technology	round lcd screen
Display size	0.71 inch	Brightness	350C/D
Packaging Details	blister+foam box+bubble bag+inside carton+master carton	View angle	all
Model Number	ESHX0711616TBBIG01	interface	4wire SPI
Supply Ability	500K pcs per month	Certification	ISO14001/ ISO9001/IATF16949
Name	round lcd display	Brand Name	HuaXin
Payment Terms	T/T	Driving IC	GC9D01
Price	$1.2	Delivery Time	4~6weeks
Minimum Order Quantity	1000	Resolution	160x160

Product Description

0.71 Inch Round TFT Display 160x160 4wire SPI Interface Driving IC GC9D01 350c/D

Product Specifications

Attribute	Value
Display Technology	Round LCD Screen
Display Size	0.71 inch
Resolution	160x160
Interface	4wire SPI
Driving IC	GC9D01
Brightness	350C/D
View Angle	All

Technical Parameters

Parameter	Value
Part No.	ESHX0711616TBBIG01
Outline Size (mm)	20.12(H) × 22.3(V) × 1.81(D)
AA Size (mm)	18(H) × 18(V)
Working Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Images

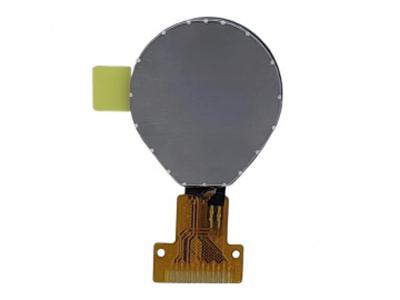

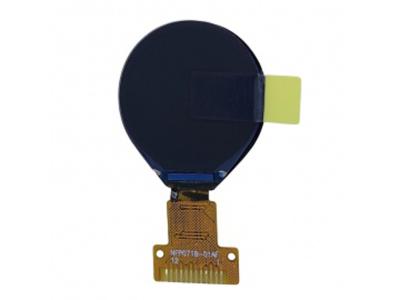

Front view of 0.71 inch round TFT display

Side view of 0.71 inch round TFT display

Close-up of 0.71 inch round TFT display

Pin Definition

Pin definition diagram for 0.71 inch round TFT display

TFT Product Knowledge

TFT substrate input flow chart

TFT structure diagram

Manufacturer Advantages

Cost-effective factory base located in inland city
Advanced equipment ensuring stable quality
Fully automated processes for efficiency and consistency
Experienced engineering team with 20+ years in LCD field
Custom product design capabilities

Certifications

ISO14001
ISO9001/IATF16949
SGS certified LCD modules

TFT Display Characteristics

Image Quality: High resolution, sharpness, and color accuracy
Response Time: Fast switching of pixels
Viewing Angles: Wide viewing angles with minimal color shift
Energy Efficiency: Lower power consumption than many alternatives
Versatility: Available in various sizes for multiple applications
Backlighting: LED backlighting system included

Product Applications

Car navigation systems and printers
Video communication and advertising displays
Automotive and medical devices
Fitness equipment and handheld devices
Industrial control systems and home appliances
