1.47
Inch
OLED
Display
Screen
-
1080×1024
Dots
-

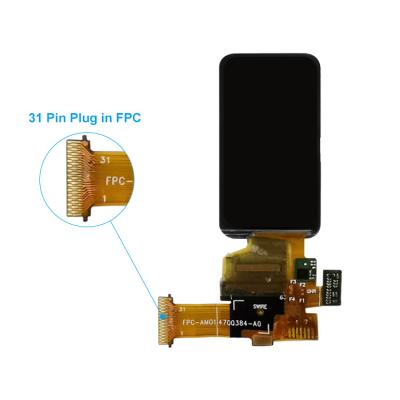

31PINS
QSPI
Interface
Driving
IC
SH8501B0
Key
Specifications
Display
Technology:
Color
OLED
Display
Technical
Parameters
|
Part
Number
|
HX147ON1490-A
|
|
Display
Technology
|
AMOLED
|
|
Operation
Temperature
|
-20
~
+70
℃
|
|
Active
Area
|
17.46
×
33.12
mm
|
|
Panel
Size
|
19.36
×
36.17
×
0.78
mm
|
|
Contrast
Ratio
|
10000:1
|
|
Driving
IC
|
SH8501B0,
ZTW622
|
|
Touch
Panel
|
With
Oncell
|
Product

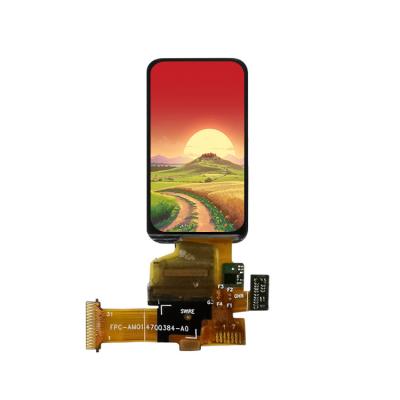

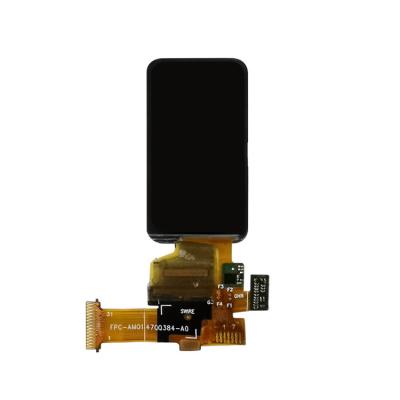

Images
Technical
Drawings
AMOLED
Technology
Overview
Key
Advantages
-
Perfect
Blacks
&
Infinite
Contrast
-
Vibrant
Colors
&
Wide
Gamut
-
Ultra-Fast
Response
Times
-
Flexibility
&
Thin
Designs
-
Energy
Efficiency
-
Always-On
Displays
(AOD)
-
Superior
Viewing
Angles
-
HDR
Performance
Limitations
AMOLED
displays
are
more
expensive
than
LCD
and
TFT
technologies,
have
a
shorter
lifetime,
and
offer
lower
peak
brightness
in
sustained
use.
Manufacturer
Advantages
-
Cost-effective
inland
factory
location
-
Advanced
equipment
for
stable
quality
-
Automated
processes
for
efficiency
-
20+
years
of
engineering
expertise
-
Custom
design
capabilities
Certifications
-
ISO14001
-
ISO9001/IATF16949
-
SGS
certified
LCD
modules
Company
Information
Huaxin
Technology
(Enshi)
Co.,
LTD
Hubei,
Enshi
Founded:
2009
Specialization:
Research,
development,
production
and
sales
of
LCD,
LCM,
TFT,
backlight,
and
OLED
displays
Registered
Capital:
20
million
Employees:
500+
R&D:
10%
of
workforce
QC:
15%
of
workforce
Product
Range
-
LCD:
VA,
TN,
HTN,
STN,
FSTN,
CSTN
series
-
LCM:
COB,
TBA,
COG,
TP,
LED
backlight
series
Production
Capacity
|
Product
|
2021
|
2022
|
2023
|
2024
|
2025
|
Unit
|
|
LCD
Production
|
4.5
|
9
|
9
|
9
|
9
|
Thousands/Day
|
|
LCM
Production
|
70
|
150
|
300
|
450
|
450
|
Thousand/Day
|
|
Backlight
Production
|
100
|
200
|
300
|
500
|
500
|
Thousand/Day
|
|
OLED
Production
|
10
|
20
|
30
|
40
|
50
|
Thousand/Day
|
Typical
Applications
-
Smartphones
and
tablets
-
Wearables
(smartwatches)
-
AR/VR
headsets
-
Television
and
monitors
-
Automotive
displays
-
Medical
and
smart
home
devices
Power
Efficiency
Comparison:
AMOLED
vs
LCD/LED
|
Feature
|
AMOLED
|
LCD/LED
|
|
Power
Consumption
|
Consumes
power
per
pixel
(dark
pixels
use
less)
|
Requires
constant
backlight
|
|
Content
Dependency
|
More
efficient
for
dark
content
|
Power
usage
remains
constant
|
|
Brightness
Control
|
Adjusts
pixel
brightness
individually
|
Fixed
backlight
brightness
|
|
Display
Size
|
More
efficient
for
smaller
displays
|
Backlights
become
less
efficient
at
larger
sizes
|
