3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2

Price $15.2
MOQ 1000
Delivery Time 4~6weeks
Brand HuaXin
Place of Origin China
Certification ISO14001/ ISO9001/IATF16949
Model Number HX034-30MB-A1
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Payment Terms T/T
Supply Ability 500K pcs per month

Product Details

Product Specification

Place of Origin China Display Technology lcd tft display panel
Display size 3.4 inch tft Brightness 300c/d
Packaging Details blister+foam box+bubble bag+inside carton+master carton View angle all
Model Number HX034-30MB-A1 interface 30PINS MIPI
Supply Ability 500K pcs per month Certification ISO14001/ ISO9001/IATF16949
Name custom tft display Brand Name HuaXin
Payment Terms T/T Driving IC D9365DA
Price $15.2 Delivery Time 4~6weeks
Minimum Order Quantity 1000 Resolution 800*800

Product Description

3.4 Inch Round TFT Display with MIPI Interface
Key Specifications
Attribute Value
Display Technology LCD TFT Display Panel
Display Size 3.4 inch TFT
Resolution 800×800 dots
Interface 30PINS MIPI
Driving IC D9365DA
Brightness 300cd/m²
View Angle All directions
Technical Parameters
Part No. HX034-30MB-A1
Panel Size 3.4 inch TFT
LCD Type IPS
Module Size 94.9×96.95×2.22mm
Display Area 87.6×87.6mm
Operating Temperature -20°C to 70°C
Storage Temperature -25°C to 75°C
Product Images

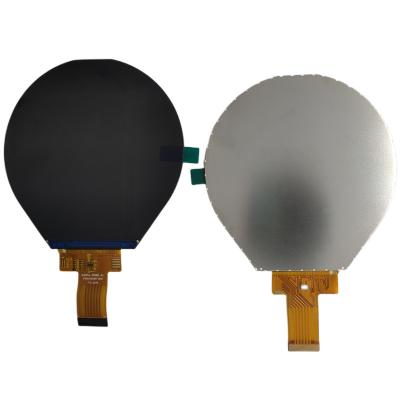

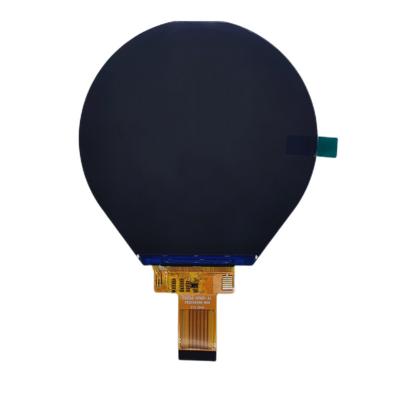

3.4 inch round TFT display front view
3.4 inch round TFT display side view
3.4 inch round TFT display close-up

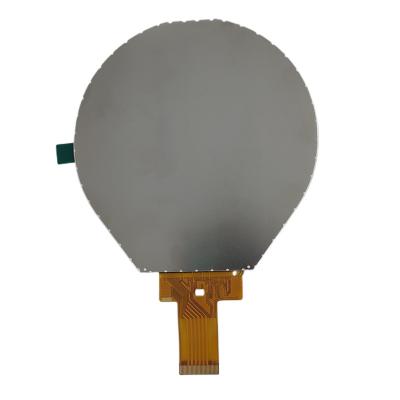

3.4 inch round TFT display back view

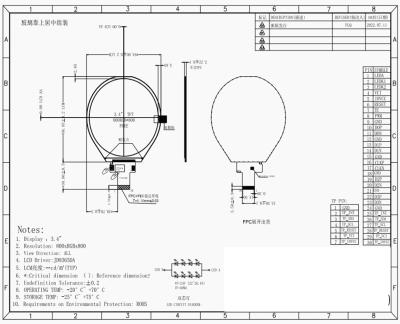

Pin Definition Diagram
30PINS MIPI interface pin definition diagram
TFT Technology Overview
TFT substrate and CF substrate input flow chart
TFT structure diagram
Manufacturer Advantages
  • Cost-effective production facility located in inland China
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency and consistency
  • Expert engineering team with 20+ years LCD experience
  • In-house design capability for customized products
About Huaxin Technology

Founded in 2009 and headquartered in Hubei Enshi, Huaxin Technology is a high-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Product Range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs

Certifications: ISO14001, ISO9001, IATF16949, SGS

Company Scale: 500+ employees, 10% R&D staff, 15% QC staff

Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD 4.5 9 9 9 9 Thousands/Day
LCM 70 150 300 450 450 Thousand/Day
Backlight 100 200 300 500 500 Thousand/Day
OLED 10 20 30 40 50 Thousand/Day
Typical Applications
  • Car navigation systems and printers
  • Video communication and advertising displays
  • Automotive and medical equipment
  • Fitness equipment and handheld devices
  • Industrial control systems and home appliances
TFT Display Advantages
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Versatility: Available in sizes from small handheld to large panel formats
TFT Display Considerations
  • Viewing angles may be limited compared to some alternatives
  • Contrast ratio may be lower than other display types
  • Requires backlighting which affects power consumption
  • Potential for motion blur in fast-moving content
  • Color gamut may be narrower than some competing technologies
