1.75 inch circular lcd display 466x466 dots MIPI,QSPI interface driving IC CST9217 700c/d

Price $6~$1000
MOQ 1000
Delivery Time 4~6weeks
Brand HuaXin
Place of Origin China
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX0175Y003AMT002
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Payment Terms T/T
Supply Ability 500K pcs per month

Product Details

Product Specification

Place of Origin China Display Technology circular tft lcd display
Display size 1.75 inch Brightness 700C/D
Packaging Details blister+foam box+bubble bag+inside carton+master carton View angle all
Model Number ESHX0175Y003AMT002 interface MIPI,QSPI
Supply Ability 500K pcs per month Certification ISO14001/ ISO9001/IATF16949
Name circular tft Brand Name HuaXin
Payment Terms T/T Driving IC CST9217
Price $6~$1000 Delivery Time 4~6weeks
Minimum Order Quantity 1000 Resolution 466x466

Product Description

1.75 Inch Circular LCD Display

High-resolution 466x466 dots circular TFT display with MIPI/QSPI interface and CST9217 driving IC, offering 700c/d brightness and wide viewing angle.

Key Specifications
Display Technology Circular TFT LCD Display
Display Size 1.75 inch
Resolution 466x466 dots
Interface MIPI, QSPI
Driving IC CST9217
Brightness 700c/d
View Angle All directions
Technical Parameters
Part No. ESHX0175Y003AMT002
Outline Size 45.93×46.35×0.8 mm
AA Size 43.76×43.76 mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Product Images

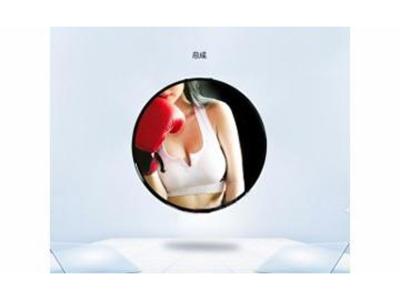

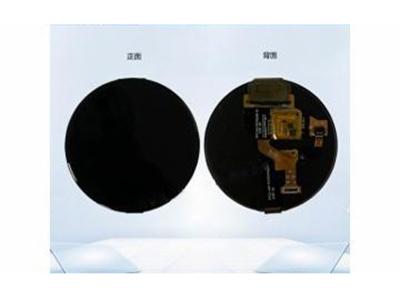

1.75 inch circular LCD display front view 1.75 inch circular LCD display side view 1.75 inch circular LCD display detailed view

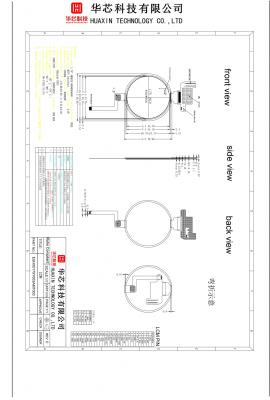

Drawing & Pin Definition
Pin definition diagram for 1.75 inch circular LCD display
TFT Product Knowledge
TFT substrate input and CF substrate input flow chart TFT structure diagram
Manufacturer Advantages
  • Cost-effective production base located in inland city
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom product design capabilities
Huaxin Technology (Enshi) Co., LTD

Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.

Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)

Certifications: ISO14001, ISO9001/IATF16949, SGS

Production Capacity
Product Type 2021 2022 2023 2024 2025
LCD (Thousands/Day) 4.5 9 9 9 9
LCM (Thousands/Day) 70 150 300 450 450
Backlight (Thousands/Day) 100 200 300 500 500
OLED (Thousands/Day) 10 20 30 40 50
Product Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth image transitions
  • Wide viewing angles without color shift
  • Energy efficient operation
  • Available in various sizes from small to large panels
  • LED backlighting for consistent illumination
  • Versatile applications across multiple industries
TFT Display Limitations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio limitations in certain conditions
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in panel design
  • Color gamut may be narrower than some alternatives
